Recovered Carbon Black rCB Processing Grinding Mill Machines

Source:nclirik Posted:2022-09-30

1. What is rCB?


Recycled carbon black (rCB), usually derived from the high-temperature pyrolysis of waste tires, is a relatively new, sustainable class of raw material products that can be used in products such as rubber, plastics and pigments.

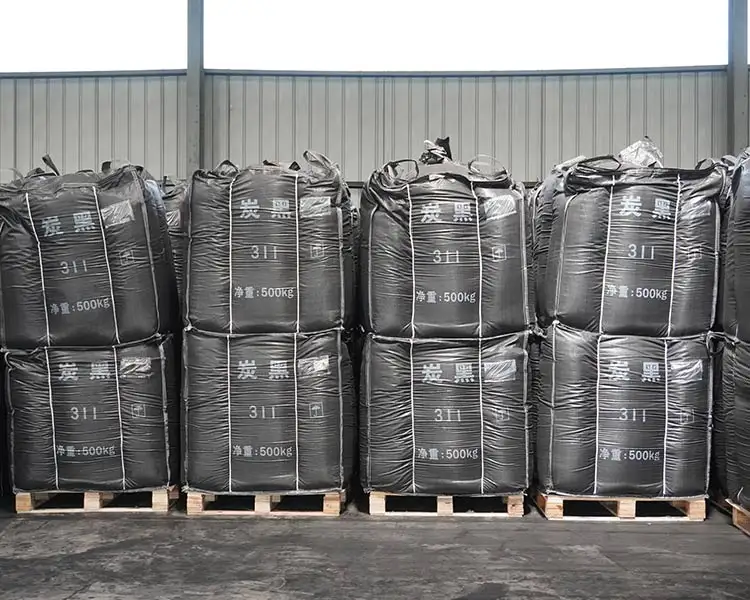

recycling carbon black rCB


2. How to process rCB?


High-temperature thermal cracking is an effective recycling method for the harmless and resource-based treatment of waste tires that has developed rapidly in recent years.

The main products of the thermal cracking process are pyrolysis oil, pyrolysis carbon black (rCB), and syngas. and steel wire.

The primary carbon material (char) obtained by cracking cannot be directly used as a rubber or plastic filler.

In order to improve and improve the performance of rCB and maximize the benefits of the thermal cracking process, the primary carbon material is usually ground and processed. A series of post-processing processes such as grinding, modification and granulation.

recycled carbon black


3. What grinding mill is suitable for processing rCB?


Recycling carbon black grinding mills (pyrolysis carbon black mills) include Raymond mills, pendulum mills, vertical mills, and ultra-fine vertical mills. If the rCB of 80-325 mesh is processed within 20 tons in one hour, it is recommended to choose an economical pulverizer (Raymond mill, pendulum pulverizer). If you want to process more than 20 tons, you can consider Vertical mill, because the production capacity of vertical mill is much larger than that of Raymond mill.

To produce recycled carbon black powder with fineness in the range of 325-2500 mesh, with a production capacity of more than 20 tons, it is recommended to use HGM ultra-fine vertical grinding mill to configure the production line. The configured multi-head grading and powder separation system can adjust the fineness of powder in the range of 325-2500 mesh at will.

The following will mainly introduce two of the most commonly used recycled carbon black mills: Raymond mill and ultra-fine mill.


1. YGM Raymond mill for recycled carbon black

YGM Raymond mill also known as High pressure suspension Raymond mill is suitable for processing various non-lammable and non-explosive mineral materials with Moh's hardness less than 6 and humidity less than 6%.
Coconut shell activated carbon Raymond mill
Raymond mill
Max feeding size: 35mm
Discharge fineness: 0.613-0.033mm
Capacity: 0.2-50 t/h
Range of application: Pumice, Barite, quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, diatomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, etc.
Applicable material hardness: Mohs hardness is less than 6.
Applicable to material humidity: less than 6%
Performance characteristics:
1.Ertical structure, so it has small footprint, strong system.
2.Compared with other mills, Raymond Mill has high passing rate - 99%.
3.Adjustable particle size:80-325mesh
4.The main drive device of Raymond mill adopts airtight gear box and belt pulley, the transmission is stable and the operation is reliable.
5.Important components are made of high quality castings and profiles, ensuring the durability of the whole equipment.
6.The centralized control is used in the electric system, the mill can basically realize unmanned operation, and the maintenance is convenient.

Parameters of Raymond mill
Model Roller Ring Feeding
Size(mm)
Finished
Size(mm)
Mill System
Power(KW)
Capacity
(t/h)
Overall
Dimension (mm)
Quantity
(piece)
Diameter
(mm)
Height
(mm)
Inner
Diameter
(mm)
Height
(mm)
YGM7815 3 260 150 780 150 15 0.613-0.033 35.7 1.0-3.0 4300*3500*5100
YGM9517 4 310 170 950 170 25 0.613-0.033 72.65 2.1-5.6 7100*5900*7900
YGM1280 3 370 240 1170 240 20 0.613-0.033 145.15 4.5-12.0 9300*5600*8200
YGM1300 4 410 280 1270 280 20 0.613-0.033 202.15 6.5-16.0 9100*8200*8400
YGM1620 4 450 300 1500 300 20 0.613-0.033 322.2 8.0-20.0 12500*5700*10500
YGM1720 4 510 300 1720 300 35 0.613-0.033 450 10.5-28.0 11550*9500*1050


2. HGM Ultrafine grinding mill for rCB


HGM Ultrafine grinding mill is also named HGM micro powder grinding mill. It can be used for pumice, activated carbonlimestone, calcite, marble, talc, barite, gypsum, dolomite, bentonite, mica, pyrophyllite, sepiolite, diatomite, graphite, alumite, fluorite, potassium feldspar , Phosphate rock, pigment and other more than 100 kinds of non-flammable and explosive materials with humidity less than 6% and Mohs hardness not greater than 6 are processed into ultra-fine powder. The particle size of the finished product is 325-2500 mesh (0.044-0.005mm).

Recovered the carbon black short as rCB mostly from the waste tires after pyrolysis carbon black, which is different from the virgin carbon black. But after refining by the HGM micro powder grinding mill. It can reach N series grade as semi-reinforcement properties at economical prices. rCB has been used as the reinforcing agent in tires.

In many many areas it can be used as the substitution for Virginia carbon black, such as the passenger car light truck tire tread. heavy duty conveyor belts, high-pressure hoses, transmission belts, industry agriculture tire tread and carcass, rubber sheeting, wire cable jacketing gaskets seals rubber roofing, passenger car light track tires sidewalls, truck car tire under threads, truck tire body and a belt prices.  As the raw materials and energy resources price keep increasing. More and more people will move to the rCB powder to save production costs.

coconut shell activated carbon ultrafine grinding mill
Ultrafine grinding mill

Feed fineness: less than 20 mm
Discharge fineness: 325-2500 mesh (0.044-0.005mm)
Capacity: 0.5-45 t/h
Applicable materials: Pumice, activated carbon, limestone, calcite, marble, talc, barite, gypsum, dolomite, bentonite, mica, pyrophyllite, sepiolite, diatomite, graphite, alumite, fluorite, potassium feldspar , Phosphate rock, etc.
Applicable material hardness: Mohs hardness is less than 6.
Applicable to material humidity: less than 6%
Performance characteristics:
  • 1. HGM Ultrafine Grinding Mill has successfully replaced the jet mill, ball mill etc, simplifty the flow, reduce the production cost and increase the final powder fineness.
  • 2. Wearing parts are made of wear-resistant materials. High utilization rate of Wear material: 2-5years.
  • 3. Integrated design of powder milling and powder selection, with a smaller footprint.
  • 4. Multi-layer grinding ring design for higher grinding efficiency
  • 5. Wide grinding range. Adjustable particle size: 200-3000 mesh.
  • 6. The structure is firm and reliable. The design of the mill is rigorous, so no screw loosening to damage the machine.
  • 7. The operation of intelligent control system is more convenient.
  • 8. Grinding cavity fully enclosed design and sound insulation room design.  It is the green and ideal equipment for environment protection.


Parameters of ultrafine grinding mill

Model HGM80 HGM80A HGM90L HGM100L-Ⅱ HGM100P HGM125L HGM1680L
Ring Diameter(mm) 800 800 900 1000 1000 1250 1680
Ring Number (PCS) 3 3 4 4 4 4 4
Input Size (mm) ≤10 ≤10 ≤10 ≤15 ≤15 ≤20 ≤20
Output Size (mesh) 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000 150-3000
Capacity (t/h) 0.5-5.5 0.5-5.5 0.8-6.5 1.2-10 1.2-11 2.5-20 5-45
Outlet Size L*W*H (mm) 8605*4139*6050 10454*3393*6626 11735*3952*7525 14507*3633*7562 14362*4200*7562 19261*4406*8591 25067*5414*9007
Main motor power (kw) 75 75 55*2 132/75*2 132/75*2 185 315


4. Global Recycled Carbon Black (rCB) Market Size


Global Recycled Carbon Black (rCB) Market Size Growth Expected at a CAGR of 43.81% from 2018 to 2024.

rCB carbon black

The recovered carbon black (rCB) industry was valued at USD 55.66 million in 2018 and is expected to reach USD 492.3 million by 2024, growing at a CAGR (CAGR) of 43.81% between 2018 and 2024. User industries such as tires, plastics, coatings, inks, etc.

Key brands include Pyrolyx, Delta-Energy Group, Black Bear Carbon, Scandinavian Enviro Systems AB, Klean Industries, Radhe Group of Energy, Alpha Carbone, Bolder Industries, DRON Industries, DVA Renewable Energy JSC, Enrestec, General Resources Recycling, SR2O Holdings, Eneform, Doublestar Group, Carbon Recovery GmBh, etc.

Leading companies have the following advantages: better performance, more product variety, better technology, and impeccable after-sales service. As such, they hold the majority of the market share in the premium segment. Looking ahead to the next few years, the slow upward trend of recent years will remain. As competition intensifies, the price gap between different brands will narrow. Likewise, gross margins will fluctuate.

The industry will continue to be led by innovation, with frequent acquisitions and strategic alliances as a key strategy for players to increase their presence in the industry. The market is in a mature stage with a high degree of concentration. At the same time, optimize the product structure and further develop value-added functions to maximize profits.

The Global Recycled Carbon Black (rCB) Market Research Report 2019 published by QYResearch provides a basic overview of the Recycled Carbon Black (rCB) industry, including definitions, classifications, applications, and industry chain structure. Discuss development policies and plans as well as manufacturing processes and cost structures.
