Focus on the field of micro powder grinding !

Talc powder grinding and processing production line

Source:nclirik Posted:2021-07-26
Talc is a hydrothermal alteration mineral. Magnesium-rich minerals often become talc after hydrothermal alteration, so talc often presents olivine, enstatite, amphibole, tremolite and other mineral illusions.
Talc is a common silicate mineral, it is very soft and has a creamy feel.
People have selected 10 minerals to represent 10 hardness levels, called Mohs hardness. Among these 10 levels, the first (that is, the softest one) is talc.
Soft talc can replace chalk to draw white marks.

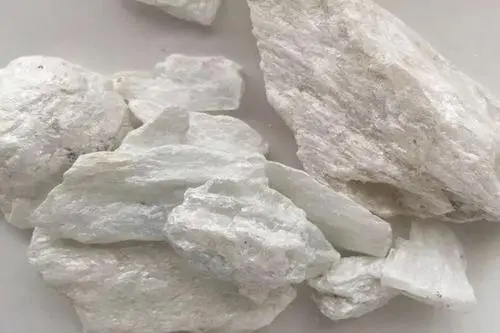

Talc is generally lump, leaf, fibrous or radial, and the color is white, off-white, and it will have various colors due to other impurities.
Talc is a mineral talc of the silicate talc group, which mainly contains hydrated magnesium silicate.


Talc application field

Talc has many uses, such as refractory materials, papermaking, rubber fillers, insulating materials, lubricants, pesticide absorbents, leather coatings, cosmetic materials and engraving materials. Talc can be divided into: cosmetic grade, medicine-food grade, coating grade, papermaking grade, plastic grade, rubber grade, cable grade, ceramic grade, fine talcum powder, waterproof material grade, etc. according to its use. The use can be described as very wide.

talc powder
Talc Powder

Processing technology of talcum powder production line

Talc powder processing is generally divided into talc coarse powder processing (0-3MM), fine powder processing (20 mesh-400 mesh), and talc ultrafine powder deep processing (400 mesh-1250 mesh) and micro powder processing (1250 mesh-3250 mesh) .

The first stage: crushing

The bulk material of talc is crushed by the crusher to the fineness (15mm-50mm) that can enter the mill.

The second stage: grinding

The crushed small pieces of talc are sent to the silo by the elevator, and then sent to the grinding chamber of the mill evenly and quantitatively by the vibrating feeder for grinding.
YGM Raymond machine and MTM high-pressure suspension roller mill can be used for fine powder processing;
Superfine powder processing can choose HGM ultrafine grinding mill, CLUM superfine vertical mill;
Coarse powder processing can choose PCC European coarse powder mill

Clirik Machinery HGM Series Ultra-fine Grinding Mill is designed for various materials such as talc, which can accept non-flammable and explosive materials below 20mm and Mohs hardness below 6.
As the main machine's grinding roller and grinding roller assembly have undergone major changes, the material has to undergo multiple grinding from top to bottom, making full use of the centrifugal force of the grinding roller, and the contact area with the grinding ring is large, so fineness can be produced Very high powder, the fineness of the finished product is mainly distributed between 5-45 microns.

HGM series ultra-fine grinding mill for talc powder making

The third stage: classification

The ground material is classified by the classifier, and the unqualified powder is classified by the classifier and then returned to the host for re-grinding.

The fourth stage: collecting powder

The powder that meets the fineness is separated and collected in the dust collector through the pipeline through the airflow.
The collected product powder is sent to the finished product silo through the discharge port by the conveying device, and then is packaged by a powder tanker or an automatic baler.

Recommended equipment

HGM talc powder grinding mill: 74-5 micron(200-2500 mesh); D97=5 micron
YGM talc powder Raymond grinding mill: 613-33 micron(30-325 mesh); D90=30 micron
CLUM talc powder vertical roller grinding mill: 20-5 micron(600-3000 mesh); D50=2 micron D97=4 micron
talc powder making machines
For the formulation of the price of the ultrafine talcum powder equipment, CLIRIK matches the reasonable price according to the configuration of the selection plan.
CLIRIK provides cost-effective selection and configuration schemes according to customers' grinding needs, formulates reasonable mill prices, and helps every talc enterprise to reduce energy consumption, realize environmentally friendly production, and create great benefits.
