Enhanced Roller Grinding Mill

Overview

Clirik enhanced roller grinding mill is suitable for processing various non-flammable and non-explosive mineral materials with Moh's hardness less than 6 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,.

The granularity of the finished powder size can be adjusted between 50 and 325 meshes(315-45 micron). Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic,iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.

Benefit

Working Principle

Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.

Working Features

. Optimized grinding part, increase grinding efficiency

Compared with the previous mill the grind pressure increased 10%, grinding area up 15 -20%. Optimized the roller layout,escalated the efficient grinding space.

. Triple vibrating damping for working stability

Triple damping to resist the vibrating transmit in the main unit base, volute aiflow house, unit body, grinding part. Be sure the stable grinding condition.

. New type impeller of classifier with VFD

Equipped the new cage type impeller for classifier, adjust the speed freely by VFD, enlarge the output size range to 80 425 mesh.

. Grinding device adopts superimposed multistage seal, prolong the lubricating cycle.

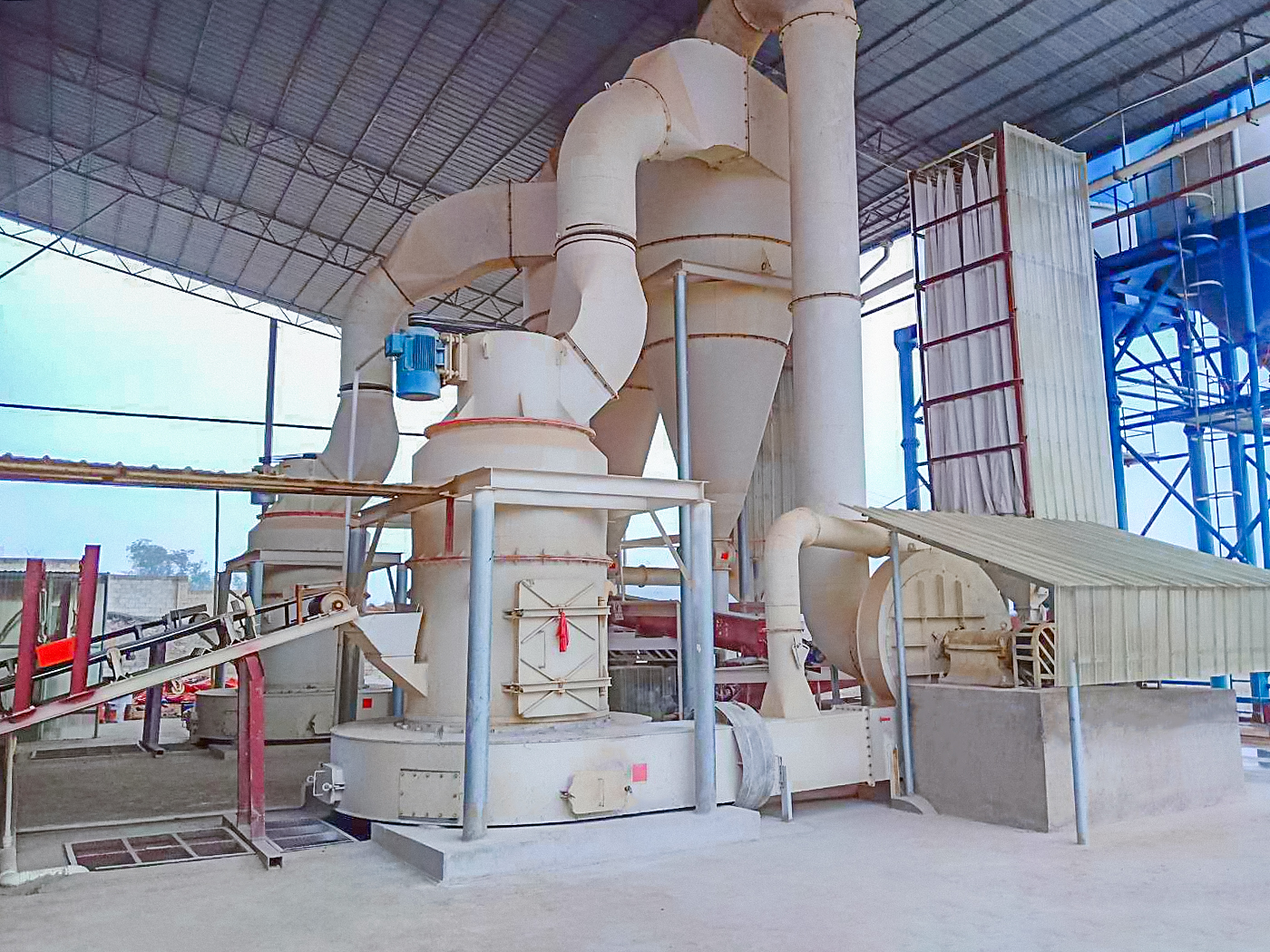

CLRM Enhanced Roller Grinding Mill Customer Case

Components

The standard configuration of the CLRM enhanced roller grinding mill consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, electrical cabinet and pipes. The optional accessories include crusher, bucket elevator, feeder.

Specifications

Model	Roller		Ring		Main Shaft Speed(r/min)	Feeding Size/mm	Mesh	Motor/kw	Capacity/(t/h)
Model	Qty/pcs	Size/mm	External Dia/mm	H/mm	Main Shaft Speed(r/min)	Feeding Size/mm	Mesh	Motor/kw	Capacity/(t/h)
CLRM9720	3-4	320*200	1077	200	145	<20	80-500	451537	1-7
CLRM1280	3	370*240	1280	240	125	<20	80-400	751555	2-12
CLRM1300	4	410*280	1390	280	112	<20	80-400	1102290	3-15
CLRM1620	4	450*300	1620	300	102	<20	80-400	16030132	5-20
CLRM1700A	4	510*300	1700	300	102	<30	80-325	18537160	6-25
CLRM1720	4	510*300	1850	300	92	<35	80-325	25045185	6-25
CLRM1900A	4	600*300	1900	300	92	<35	80-325	25045220	8-32
CLRM2150	4	600*300	2150	300	85	<35	80-325	31545280	12-35

Note: for the motor data in the above sheet such as “45*15*37” means the main motor “classifier motor” blower motor.
