Capacity: 27-660t/h
Max feeding size: 275mm
Processing ability: 27-660t/h
Range of application: Almost all minerals, such as quartz, feldspar, mica, calcite, gypsum, fluorite, limestone, soil, clay, marble, granite, pebble, coal, slag, iron ore, copper ore, manganeseore, refractory material, glass, etc.

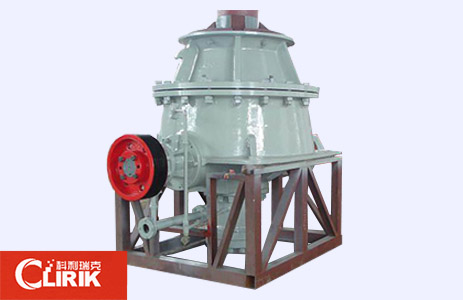

Brief Introduction of HCS cone crusher:
HCS series single cylinder cone crusher with hydraulic-driven system is a kind of new type high efficient crushing equipment which is developed by Clirik engineers through over 20 year's effort of design, manufacture, sale, and after-sale service in crushing industries. It is widely used in primary crushing, secondary crushing, tertiary crushing and fine crushing.
1. High production capacity and excellent grain type of output product
| Model | Movable Cone Diameter (mm) | Chamber Style | Max Feeding(mm) | Discharge Opening(mm) | Capacity(t/h) | Power(kw) | Machine Size(mm) |
| HCS100 | 790 | EC | 135 | 10-32 | 46-128 | 90 | 1550×1575×1965 |
| C | 90 | 10-25 | 43-118 | ||||
| M | 65 | 8-16 | 36-76 | ||||
| MF | 50 | 6-13 | 29-68 | ||||
| F | 35 | 4-10 | 27-57 | ||||
| EF | 28 | 6 | 30-40 | ||||
| HCS160 | 956 | EC | 180 | 13-38 | 69-215 | 160 | 1875×1920×2400 |
| C | 145 | 13-32 | 65-197 | ||||
| MC | 115 | 10-25 | 60-180 | ||||
| M | 90 | 10-22 | 60-160 | ||||
| MF | 75 | 8-19 | 61-125 | ||||
| F | 50 | 6-19 | 45-105 | ||||
| EF | 35 | 6 | 70-90 | ||||
| HCS250 | 1150 | EC | 215 | 16-44 | 110-380 | 250 | 2100×2320×2780 |
| C | 175 | 13-38 | 100-385 | ||||
| MC | 140 | 13-32 | 95-325 | ||||
| M | 110 | 13-25 | 115-335 | ||||
| MF | 85 | 10-22 | 90-280 | ||||
| F | 70 | 8-19 | 90-235 | ||||
| EF | 38 | 8 | 100-125 | ||||
| HCS315 | 1408 | EC | 275 | 16-44 | 177-660 | 315 | 2380×2735×3265 |
| CX | 245 | 16-38 | 170-650 | ||||
| C | 215 | 16-38 | 170-640 | ||||
| MC | 175 | 16-32 | 160-552 | ||||
| M | 135 | 16-32 | 195-500 | ||||
| MF | 115 | 13-32 | 190-450 | ||||
| F | 85 | 13-25 | 195-400 | ||||
| EF | 65 | 13-22 | 210-300 |
Note: This specification is just referencing, any changes are subject to the products.
