HPC cone crusher

Raw materials: iron ore, granite, limestone, quartzite, sandstone, cobblestone and so on
Capacity: 150-500t/h
Max feeding size: 290mm
Application: cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy
Shipping ports: Shanghai, China
Delivery: 15 days after received the deposit

Overview

Brief Introduction of HPC cone crusher:

Base on the latest technology and decades of years' producing experience, Clirik designed the HPC series cone crusher. It has excellent crushing efficiency and good hydraulic control system. Now the HPC series cone crusher has wide application in secondary crushing of many kinds of mining and rock, etc.

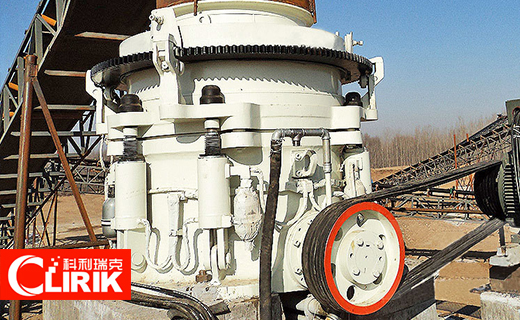

HPC cone crusher

HPC cone crusher

Benefit

1. Large reduction ratio, high production efficiency;

2. Less consumption of wearing parts, low operating costs;
3. Pyramid broken, perfect of product shape;
4. Hydraulic protection and hydraulic pressure cavity clear high degree of automation to reduce downtime;

Specifications

Model Movable Cone Diameter (mm) Chamber Style Min. Discharging (mm) Max. Feeding (mm) Capacity (t/h) Power (kw) Motor Model Machine Size (mm)
HPC220 1220 Coarse 19 210 185-300 220 Y2-355M1-4 2726×1950×2182
Fine 13 105 150-210
HPC400 1570 Coarse 30 290 400-500 400 Y3-4002-6 3447×2830×2977
Fine 16 135 260-400

Note: This specification is just referencing, any changes are subject to the products.
