High Pressure Grinding Mill

Capacity: 0-50tph

Max feeding size: 35mm

Processing ability: 0-50tph

Range of application: Barite, quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, diatomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, etc.

Overview

 The Handling Materials of High Pressure Grinding Mill:



High Pressure Grinding Mill, also called High Pressure Mill. It is suitable for producing powder in mineral, chemical, building and other industries.



High Pressure Grinding Mill is suitable for grinding of all kinds of materials whose Moh’s hardness is below 9.3, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, clay, white mud, mica, refractory material, glass, total about 1000 kinds of materials.

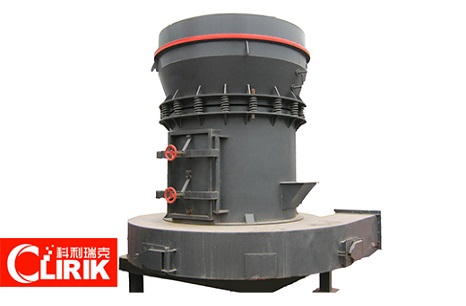

 High Pressure Grinding Mill



Internal structure and Working Principle of High Pressure Grinding Mill:



The standard configuration of High Pressure Grinding Mill consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, control cabinet motor and pipes. The optional accessories include crusher, bucket elevator, feeder.



High Pressure Grinding Mill



Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; The airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.



Benefit

 Benefit of High Pressure Grinding Mill:



1.Ertical structure, so it has small footprint, strong system.



2.Compared with other mills, Raymond Mill has high passing rate - 99%.



3.Adjustable particle size:80-325mesh



4.The main drive device of Raymond mill adopts airtight gear box and belt pulley, the transmission is stable and the operation is reliable.



5.Important components are made of high quality castings and profiles, ensuring the durability of the whole equipment.



6.The centralized control is used in the electric system, the mill can basically realize unmanned operation, and the maintenance is convenient.





Specifications

  Specifications of High Pressure Grinding Mill:




Model

Roller

Ring

Feeding
Size
(mm)

Finished
Size
(mm)

Motor
Powder
(KW)

Capacity
(t/h)

Overall
Dimension
(mm)

quantity
(piece)

Diameter(mm)

Height
(mm)

InnerDiameter
(mm)

Height
(mm)

YGM7815

3

260

150

780

150

15

0.613-0.033

35.7

1--3

4300*3500*5100

YGM8314

3

270

140

830

140

20

0.613-0.033

48

1.2-4.6

5300*4100*5200

YGM9517

4

310

170

950

170

25

0.613-0.033

79.5

2.1-5.6

7100*5900*7900

YGM4121

5

410

210

1280

210

30

0.613-0.033

157.5

2.8-10.5

9200*7250*9700

MTM1600

6

440

270

1600

270

35

0.613-0.033

275

5--20

12550*5700*8350

Note: This specification is just referencing, any changes are subject to the products.
